A Refined Drainage Detail for Exceptional Hardscapes.
The SINNOV Paver Drain combines purposeful engineering and distinctive architectural design with a 12-gauge, 316 Marine Grade Stainless Steel grate, available in its natural Stainless Steel finish or enhanced with a PVD Brass Finish or PVD Graphite Finish.
Four Distinctive Designs.
Architectural products, elevated.

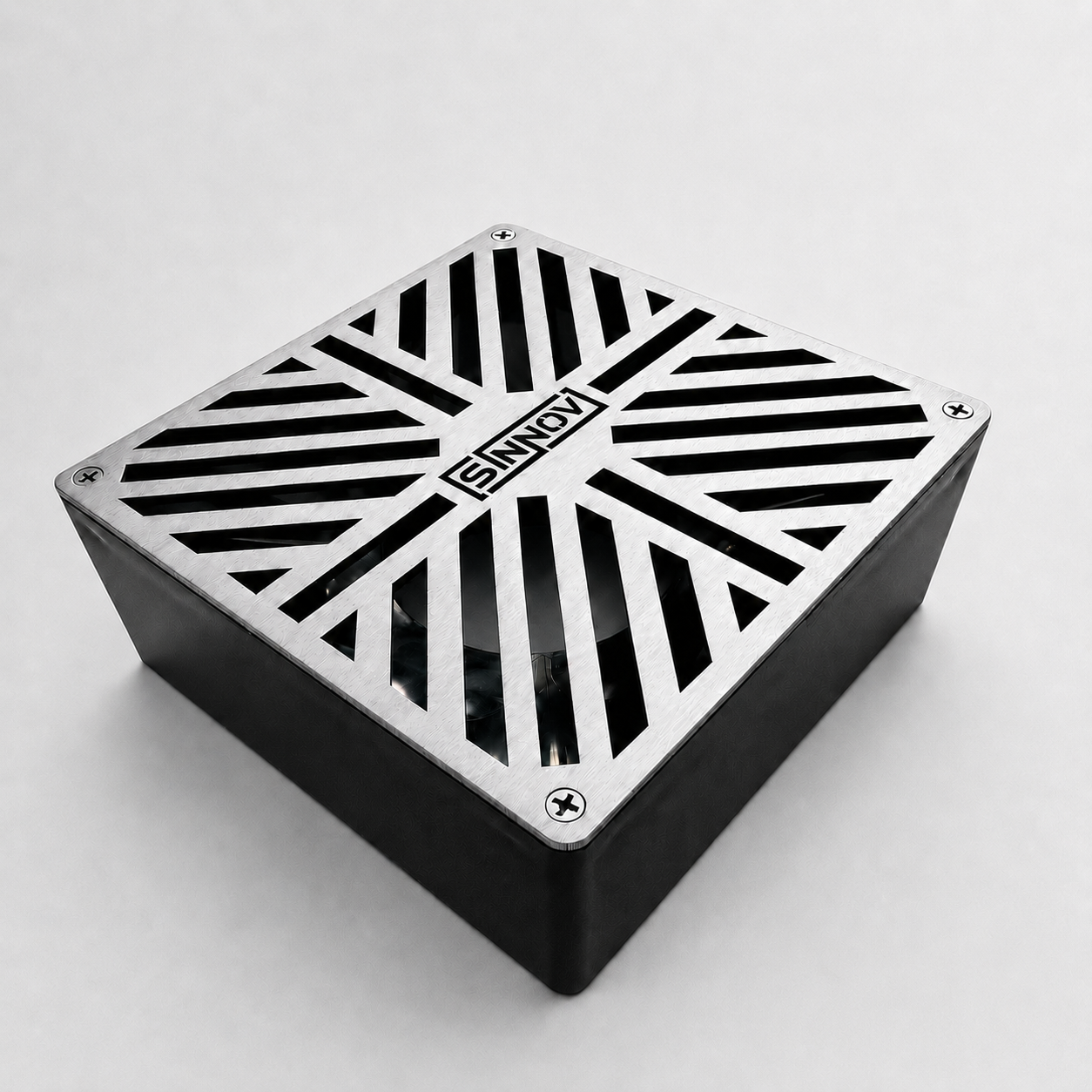

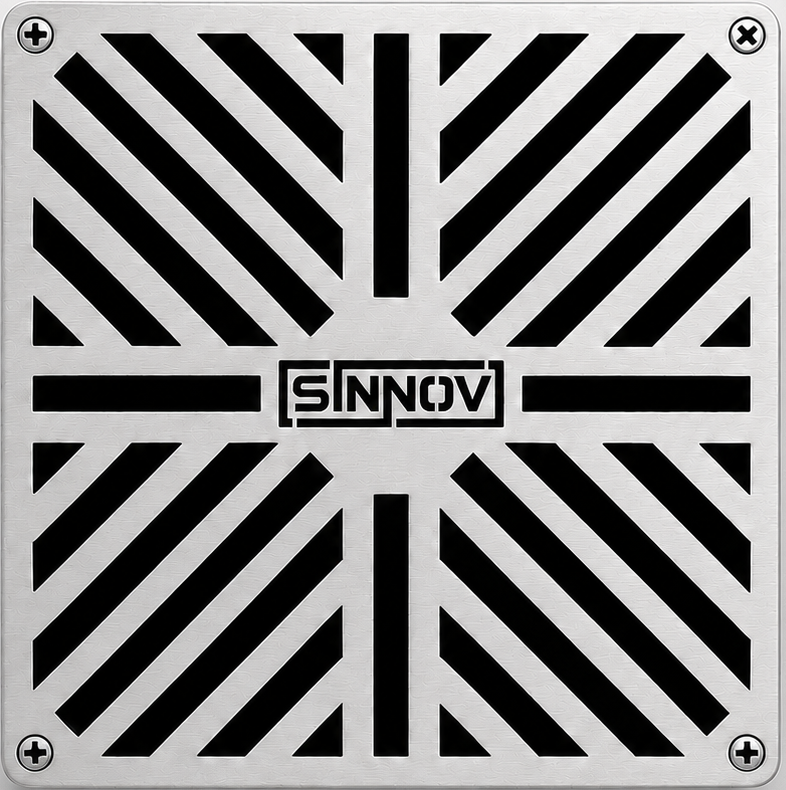

Classic

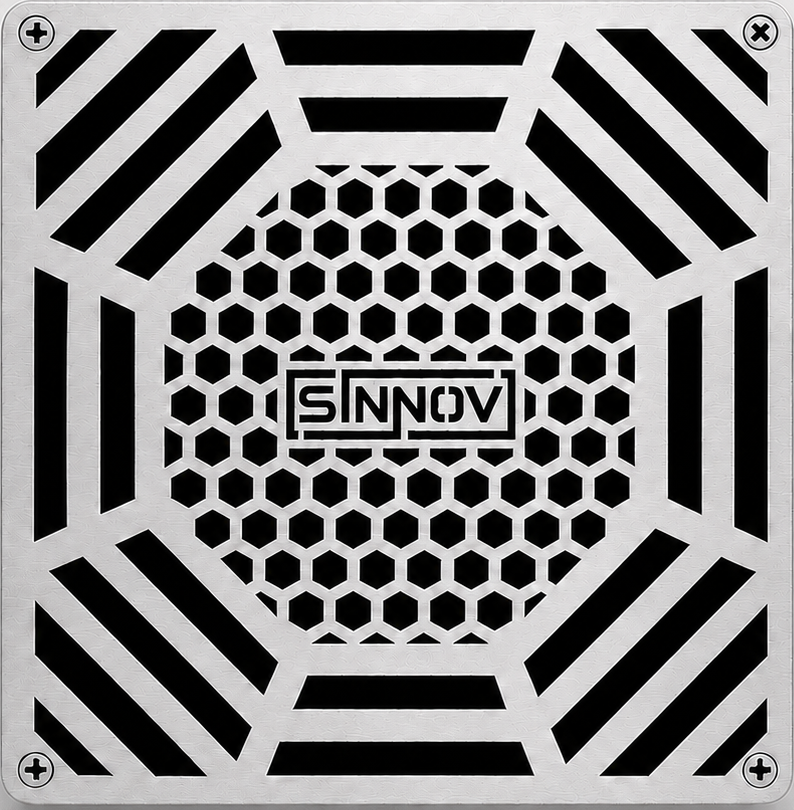

Honeycomb

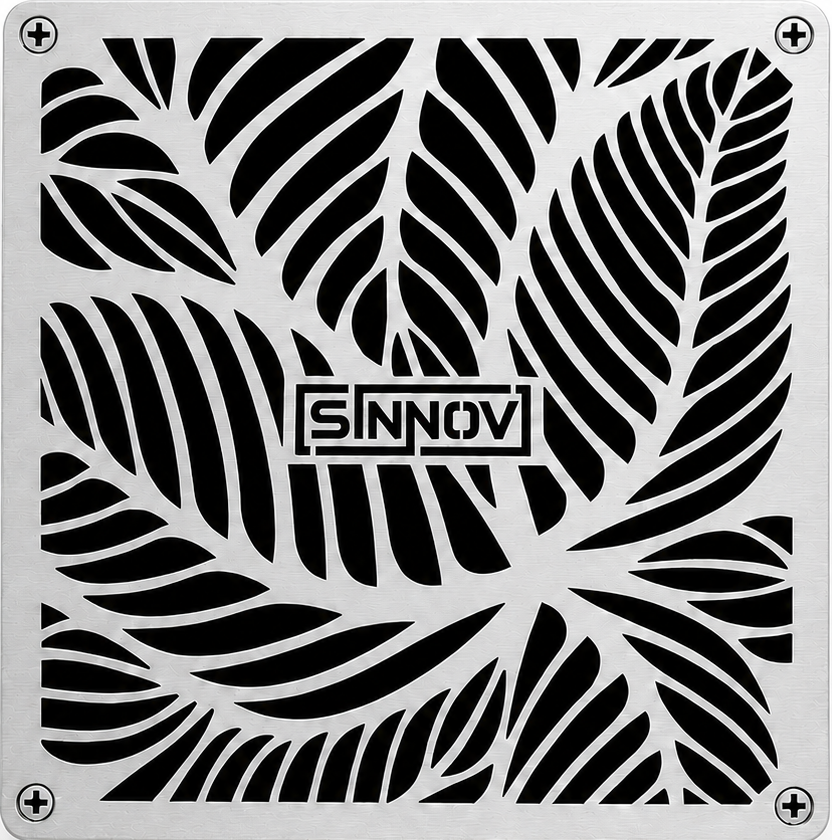

Palm

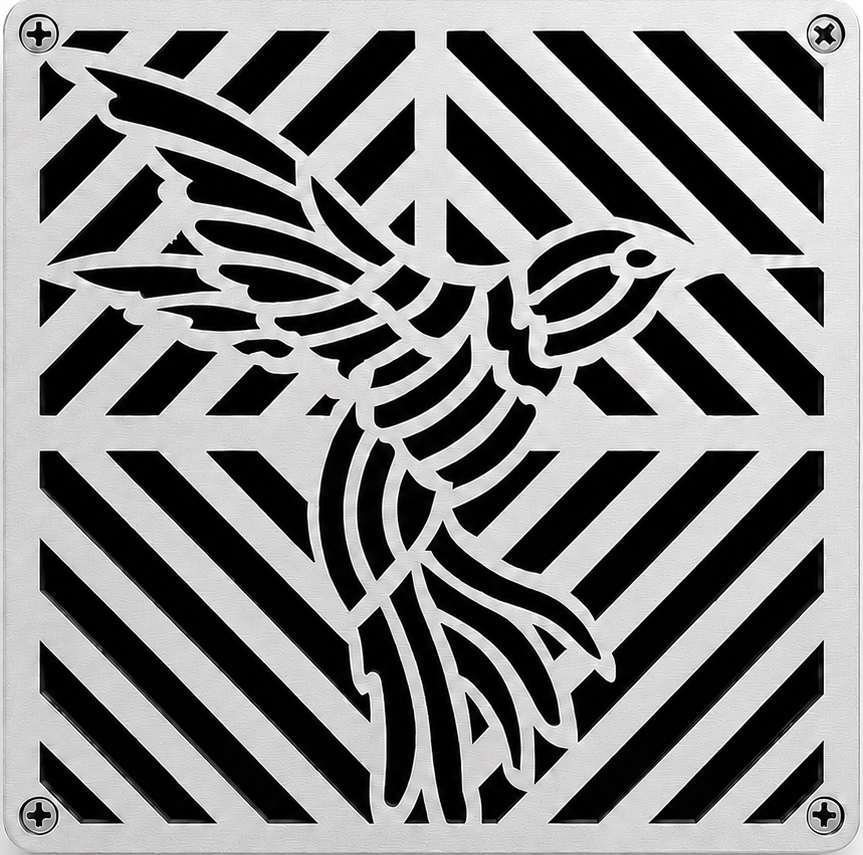

Hummingbird
Three finishes
316 Marine grade Stainless steel
Stainless steel
Natural finish
Honeycomb

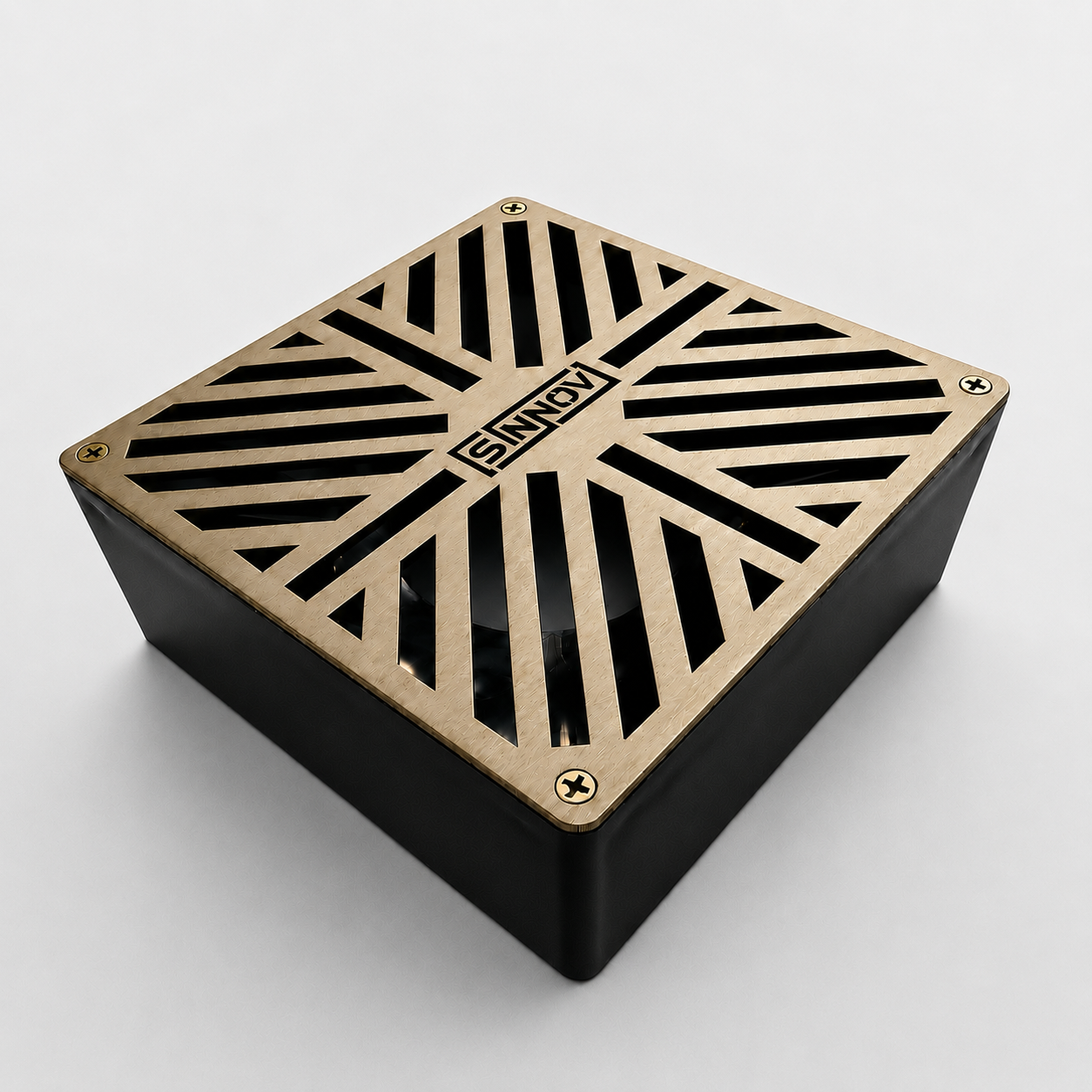

PVD brass finish
Hummingbird

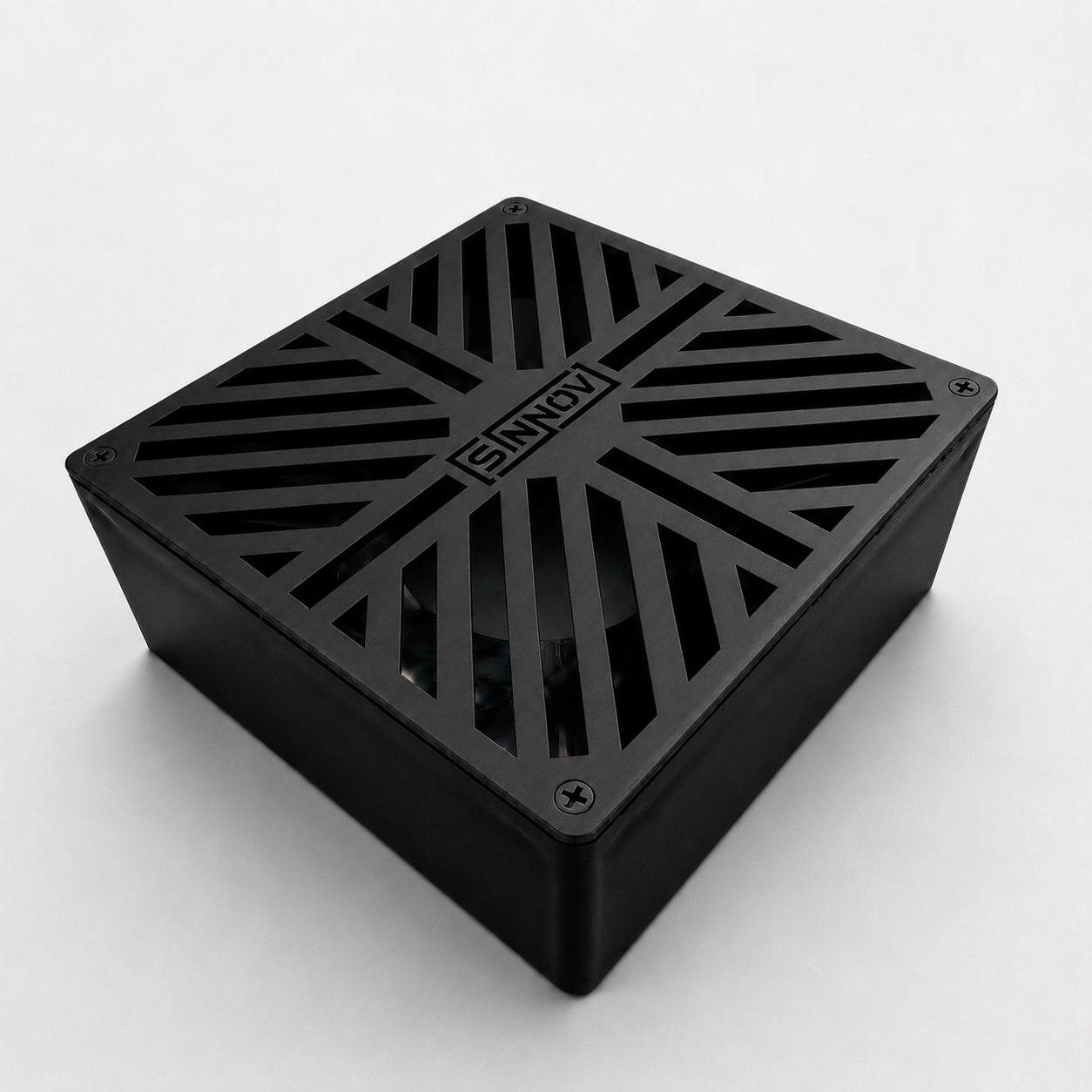

PVD graphite finish
Estimated Flow Rate
Flow-rate comparison by grate design
| Grate design | GPM at 1% slope | GPM at 2% slope |
|---|---|---|
| Classic | 34.7 GPM | 49.0 GPM |
| Palm | 39.4 GPM | 55.7 GPM |
| Honeycomb | 35.4 GPM | 49.9 GPM |
| Hummingbird | 34.0 GPM | 48.0 GPM |
Request Your Paver Drain
Frequently Asked Questions
What are the dimensions of the SINNOV Paver Drain?
The Paver Drain measures 6 in × 6 in × 2.25 in (152.4 mm × 152.4 mm × 57 mm), measured as length × width × height.
Are adapters required to connect the Paver Drain?
The SINNOV Paver Drain connects directly to 3-inch and 4-inch SDR35 or triple-wall pipe without an adapter. When connecting to ABS or Schedule 40 PVC pipe, an appropriate transition adapter or coupling is required. The specific fitting will depend on the pipe material, size and installation conditions.
Where can the SINNOV Paver Drain be installed?
The SINNOV Paver Drain is designed for pedestrian hardscape areas such as patios, pool decks, walkways, courtyards and refined outdoor living spaces. It can be integrated into pavers, porcelain pavers, concrete, travertine, natural stone and other suitable professionally installed hardscape materials.
Are the grate openings heel-proof?
Yes. The openings are designed to measure 1/4 inch or less, providing a more comfortable and refined surface for pedestrian areas.
Can the grate be removed for cleaning?
Yes. The grate is secured with four removable screws and integrated brass threaded inserts. This provides convenient access for cleaning and maintenance while allowing the grate to be removed and reinstalled without repeatedly threading the screws directly into the ABS base.
Should the Paver Drain be installed flush with the finished surface?
Yes. The grate should be installed level and flush with the surrounding finished surface to create a clean architectural appearance and help provide comfortable pedestrian access.
Is professional installation recommended?
Yes. Professional installation is recommended to ensure proper pipe connection, drainage alignment and a flush transition with the surrounding finished surface. Installation should also comply with applicable local building and plumbing requirements.
What materials is the SINNOV Paver Drain made from?
The grate is crafted from 12-gauge, 316 Marine Grade Stainless Steel, selected for its durability, refined appearance and excellent resistance to corrosion in demanding outdoor environments. The base is manufactured from durable ABS, providing a strong and stable foundation for professional installation.
What finishes are available, and what material are they made from?
The SINNOV Paver Drain is available in 316 Stainless Steel, PVD Brass Finish and PVD Graphite Finish. All three options use 316 Marine Grade Stainless Steel; the Brass and Graphite finishes feature a durable PVD coating applied over the stainless-steel substrate.
Why does SINNOV use 316 instead of 304 Stainless Steel?
316 stainless steel contains molybdenum, which provides improved resistance to chlorides and corrosion compared with standard 304 stainless steel. This makes it an excellent material for outdoor environments, including areas exposed to moisture, pool water and coastal conditions.
What is PVD coating, and how durable is it?
PVD, or Physical Vapor Deposition, is a vacuum-applied process that deposits a thin, durable decorative finish onto the stainless-steel surface. It offers enhanced color stability, wear resistance and corrosion protection compared with conventional paint. However, no decorative finish is completely scratch-proof, and abrasive tools, harsh chemicals or improper cleaning can damage the surface.
What designs are available?
The collection includes Classic, Honeycomb, Palm and Hummingbird. Each design is available in 316 Stainless Steel, PVD Brass Finish and PVD Graphite Finish, creating a collection of 12 product options.
Where is the Paver Drain manufactured?
The SINNOV Paver Drain is proudly made in the USA.
How should I clean and maintain my SINNOV Paver Drain?
Use warm water, mild dish soap and a soft cloth or non-abrasive sponge. Rinse thoroughly and dry with a clean microfiber towel. Do not use sandpaper, steel wool, abrasive pads, wire brushes, metal scrapers, muriatic acid, other harsh acids, undiluted bleach or aggressive chemical cleaners.
Remove construction residue, salts and pool chemicals promptly. Poolside and coastal installations may require more frequent rinsing and maintenance.
Is the Paver Drain designed for vehicular traffic?
The SINNOV Paver Drain is designed for pedestrian hardscape applications. For projects involving vehicular traffic or specialized loading conditions, contact SINNOV before specifying or installing the product.
