Paver Drain

Elegant - Beautiful - Functional




Specifications

Height: 2.25 in (60 mm)

Length: 6 in (152.4 mm)

Width: 6 in (152.4 mm)

Weight: 1.27 lbs (0.58 kg)

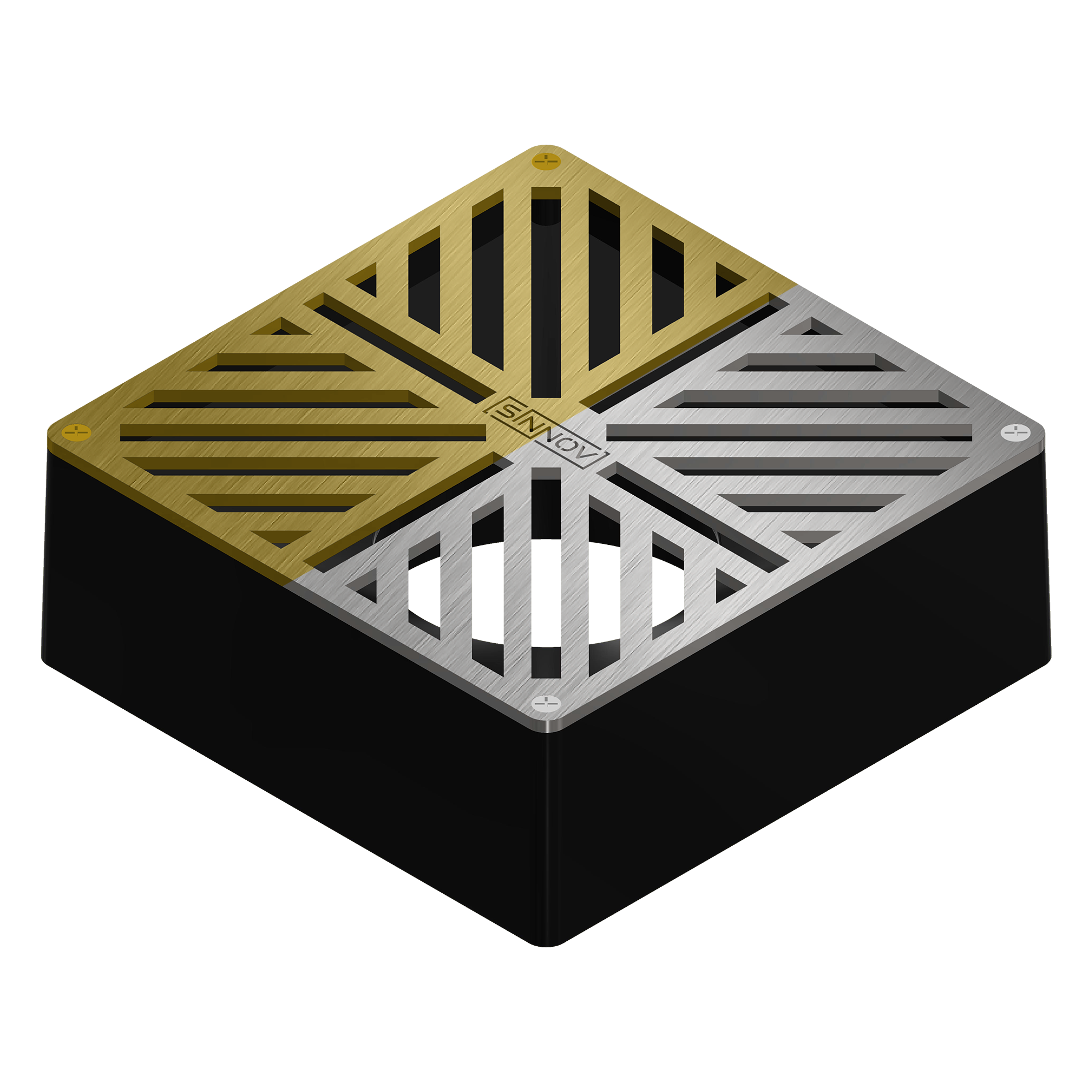

Finishes: Brass & Stainless Steel


Features & Benefits

  • Comes fully assembled

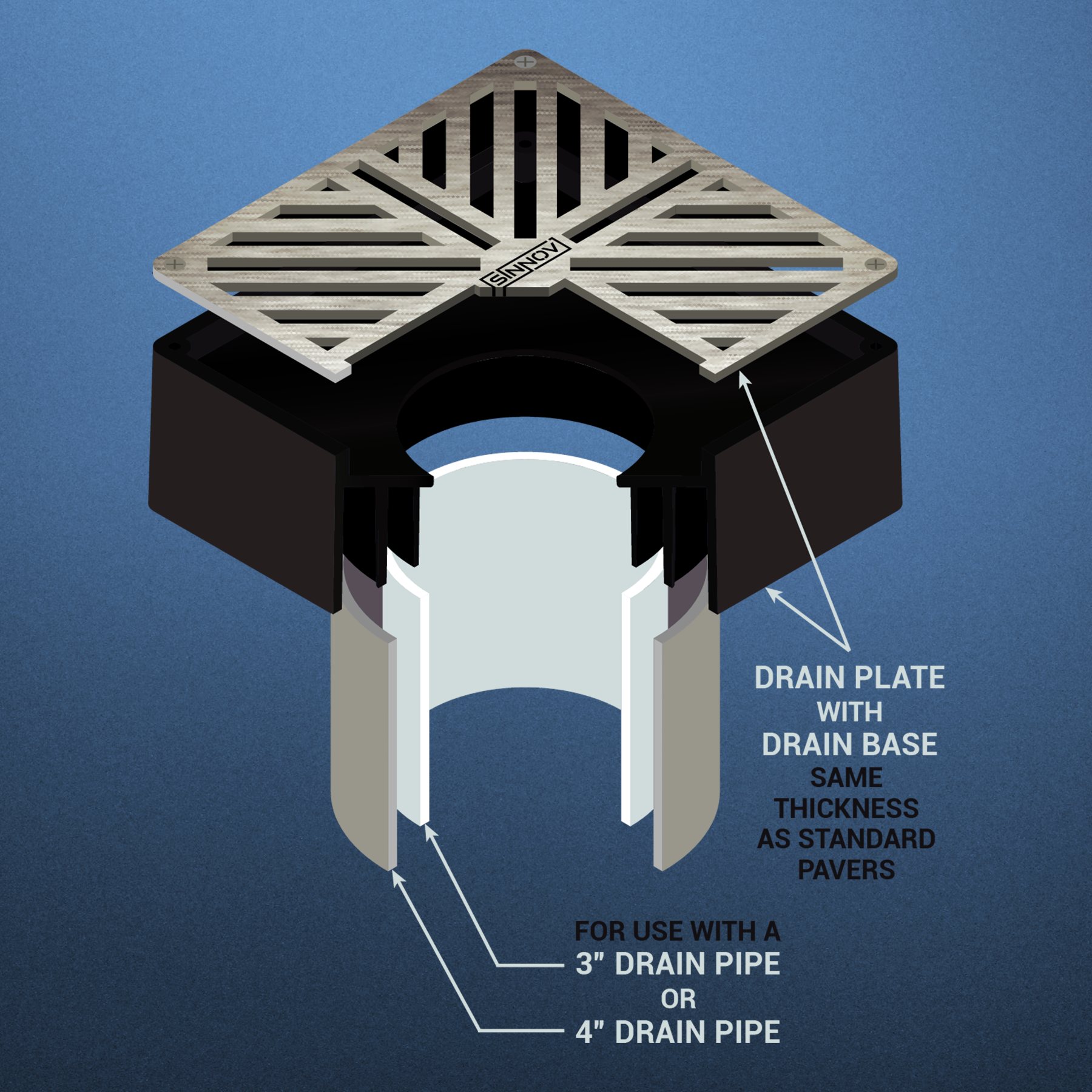

  • Fits 3 and 4 Inch outdoor drain pipes (SDR-35 and Triplewall)

  • No adapters are needed.

  • Simple grate removal for cleaning and maintenance

  • Sloped interior design for efficient water flow

  • Made with durable and weather resistant materials
    (Stainless Steel 316 & Brass, with an ABS plastic base)

  • Proudly made in the USA

  • Patented design under Patent No: US-11555279-B2


Installation

Installation is easy thanks to the drain’s 6 x 6 x 2.25 Inch dimensions. Paver Drain works for Patios, Pool Decks, Walkways, Plazas, Hotels, and Backyards.

The drain is also usable for projects with Concrete, Natural Stone, Travertine, and more.




Drainage Flow Capacity (GPM)

*Estimations based on Manning’s Roughness ASAE EP 260.3

New Design Showcase - Palm

FEATURED

As seen on page 7 of the ICPI’s 2019 InterlockDesign magazine.
